Cathode binder HEVER 701/701H
Items | Unit | 701 (Typical value) | 701H (Typical value) |
Appearance | / | White powder | White powder |
Particle size D50 | μm | 10 | 10 |
Moisture content | ppm | 500 | 500 |
Melting point | ℃ | 163 | 163 |
Mw | 104g/mol | 75 | 70 |
Rotary viscosity（7%） | mp.s | 3500 | 6500 |
Metallic element | ppm | 0.02 | 0.02 |
HEVER 701/701H are homopolymer PVDF and prepared by emulsion polymerization;
Compared to HEVER 701, HEVER 701H has a higher viscosity.
LFP/SP/PVDF=97.7/0.7/1.6 65% solid content

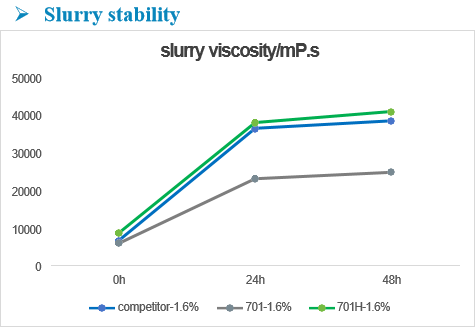

HEVER 701 has a outstanding performance in slurry stability and is especially suitable for small particle size LFP;

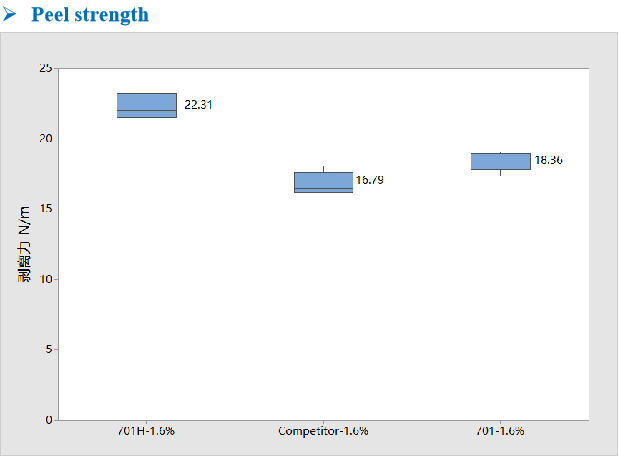

HEVER 701H exhibits enhanced adhesion and the adding amount can be reduced in electrode。
Battery design:
Positive electrode: LFP:97.7%, surface density 320g/㎡, compaction density 2.50g/m³ Negative electrode: Graphite 96.0%, surface density 160g/㎡, compaction density 1.55g/m³
10 positive, 11 negative, theoretical capacity: 1.2Ah, N/P ratio :1.12

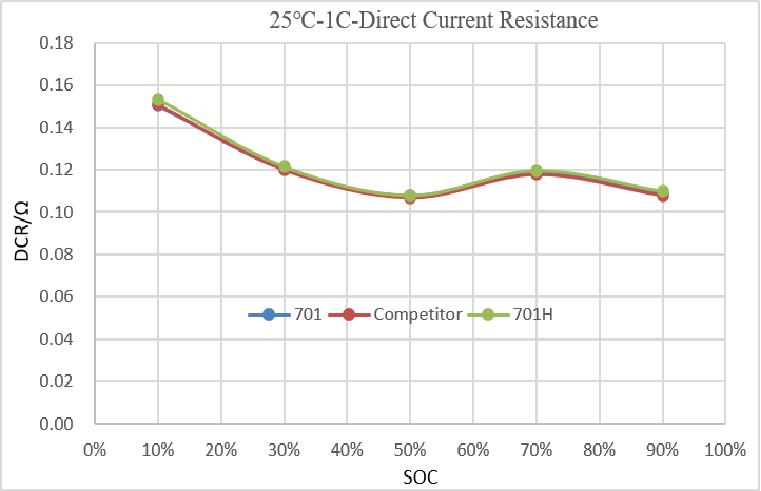

HEVER 701 and 701H both have excellent electrochemical performance；

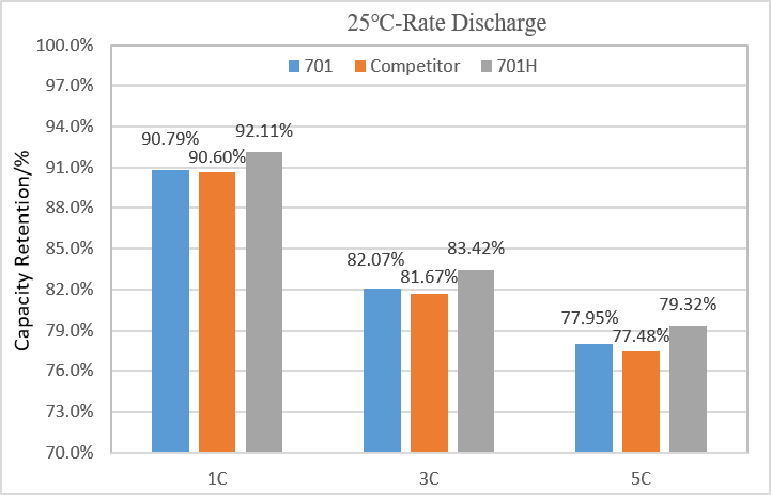

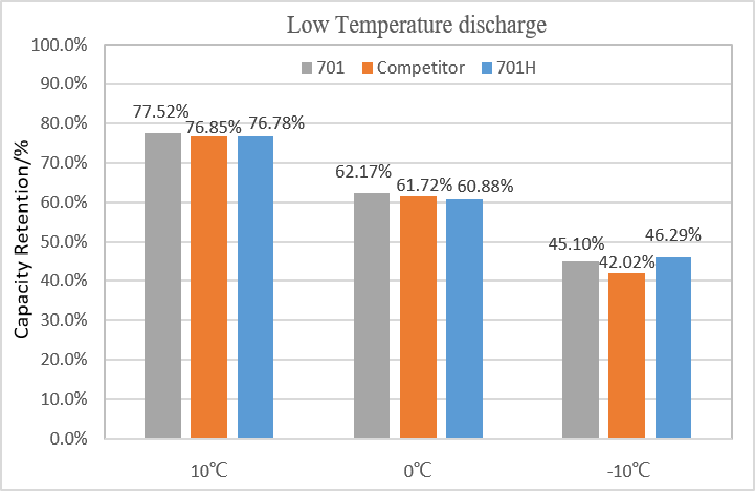

701H is 2 percentage points higher than competitor in rate discharge and 4 percentage points higher than competitor at -10 ℃
